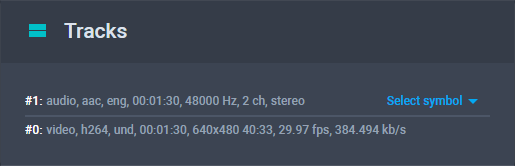

The Tracks Section

The Tracks section displays the underlying streams of the media item and their details:

• Stream type - video, audio, data, timed text stream
• Framerate - in fps
• Frame Size - the resolution, in pixels
• Codec
• Language - the first 3 letters of the language (und is undefined)
• Duration - in HH:MM:SS format
• Aspect Ratio
• Bit Rate - in Kb/s
• Audio Frequency - in Hz
• Number of Audio Channels
• Sound type - either Stereo or Mono

The Tracks Section

Clicking on Select Symbol allows you to choose a channel order for your audio tracks to associate them to the tracks for use in future operations, such as transmuxing, transcoding etc.

Clicking on a video track allows you to set its color properties in the Edit Video Track dialog.

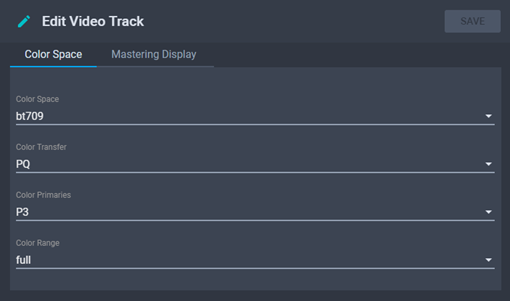

The Edit Video Track Dialog - Color Space Tab

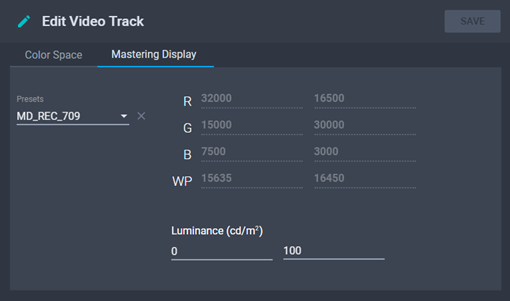

The Edit Video Track Dialog - Mastering Display Tab
